Product Details
Brand Name: Zonghai
Certification: ISO9001
Model Number: Flexible Onion Tank
Payment & Shipping Terms
Minimum Order Quantity: 5 Sets
Price: 65-328 USD
Packaging Details: Single Item
Delivery Time: 7-30 Working Days
Payment Terms: T/T
Supply Ability: 50 Sets/Week
Durability: |
UV Resistant And Weatherproof |
Customization: |
Logo, Size, And Color Can Be Customized |
Grade: |
Food Grade |
Thickness: |
0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm |
Warranty: |
1 Year Limited Warranty |
Shape: |
Round Or Square |
Custom Order: |
Accept |
Main Material: |
PVC Or TPU |
Durability: |
UV Resistant And Weatherproof |
Customization: |
Logo, Size, And Color Can Be Customized |
Grade: |
Food Grade |
Thickness: |
0.7mm, 0.8mm, 0.9mm, 1.0mm, 1.2mm, 1.5mm |
Warranty: |
1 Year Limited Warranty |
Shape: |
Round Or Square |
Custom Order: |
Accept |
Main Material: |
PVC Or TPU |

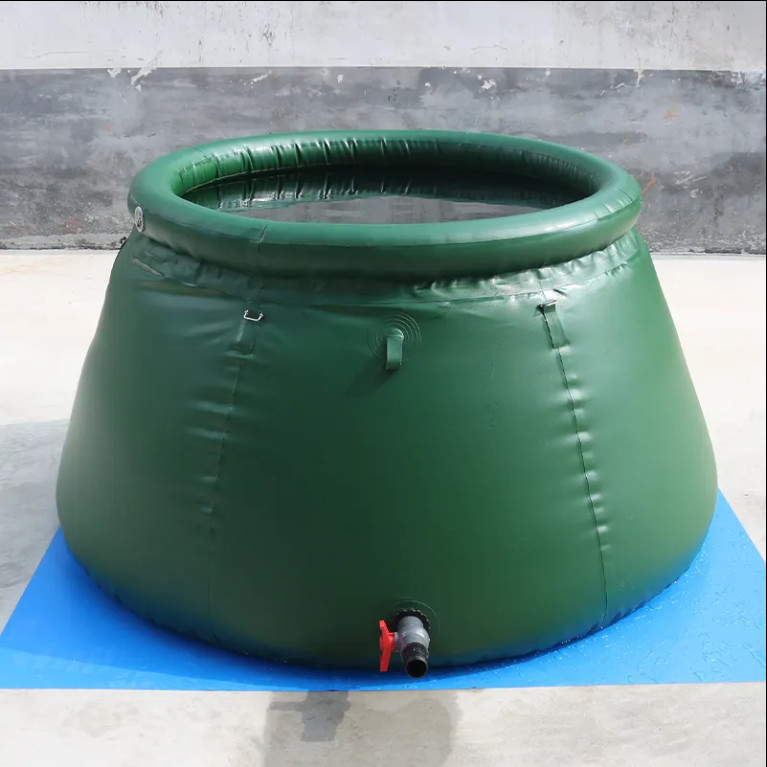

The Flexible PVC onion folding water bladder is specifically engineered for harsh environments, utilizing top-quality food grade PVC material and featuring a conical structure. This design is ideal for the safe storage of drinking water, household water, and non-corrosive liquids.
The innovative conical shape not only boosts compressive strength but also makes it well-suited for navigating rugged terrain. This versatile water bladder can be applied in various scenarios such as military exercises, flood management, emergency response, field operations, and rapid water provision.
Effortlessly expand or collapse the bladder without requiring complex tools, reducing its size by up to 80% when empty. With customizable capacities ranging from 50L to 50000L, it can meet specific requirements and is suitable for continuous use year-round.
Cone shaped structure enhances compressive strength
The bottom of the cone disperses pressure, avoiding scratches from sharp stones and tree branches, and is suitable for dragging in complex terrains such as mountains and mud.
Multi layer PVC coating+explosion-proof reinforcement design, with a tear resistance strength of up to 8000N/m², capable of withstanding severe handling impacts.
Rapid deployment, saving space
Unfold in just 5 minutes, with a thickness of less than 15cm after folding, suitable for various transportation vehicles such as trucks, helicopters, and assault boats.
Standard anti slip handle and towing strap, capable of being carried by a single person, supporting installation on irregular terrain such as slopes and shallow waters.
Large capacity customization, flexible adaptation to different scenarios
The basic model covers a capacity of 500L/1000L/2000L and supports customized ultra large specifications (50 ton level) to meet the needs of military marching and centralized water supply in disaster areas.
Optional compartment can be used to achieve multi liquid classification storage (such as separate zones for drinking water and disinfectant).
24/7 durable design
The interface adopts industrial grade ABS valves, with a leakage prevention accuracy of 99.9%, and supports rapid water injection/drainage by high-pressure water pumps.
Reserved sewage outlet at the bottom, which can be cleaned regularly and extend its service life to more than 10 years.
Troop training/field training: Lightweight design (20kg/1000L) suitable for single soldier carrying, conical base stable and anti tipping.
Emergency response to flood disasters: Quickly set up temporary water storage stations to support safe storage of turbid water after sedimentation and purification.
Earthquake/fire rescue: The folding bag can be inserted into a narrow rescue passage, providing instant access to clean water sources.
Outdoor engineering work: Provide stable water supply for remote construction sites, withstand repeated use in dusty and gravel environments.
Our Product Technical Support and Services for the Onion Tank include:
- On-site installation guidance and training
- Troubleshooting assistance for any technical issues
- Maintenance and repair services
- Product customization options to fit specific needs
