Emergency Infrastructure – Flexible Fuel Storage for Remote Mining in the Ural Mountains
Published On: June 3, 2026
1. The Scenario: Context & Conflict
A mining operation in the northern Ural Mountains required a temporary fuel depot for diesel to power their heavy machinery during an expansion phase. Building permanent steel tank farms was impossible due to the permafrost—the ground could not support the weight of concrete foundations, and the construction timeline was too long (12+ months). The conflict was a "Resource Gap": without local fuel storage, the mining equipment would sit idle, costing the company approximately $50,000 per day in lost productivity.
2. The Technical Challenge & Solution Path

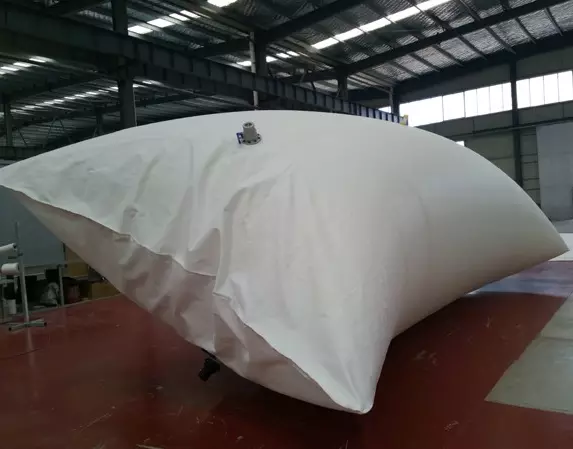

The solution was not a shipping flexitank, but a "Large-Scale Flexible Storage Bladder" (Pillow Tank). The technical challenge was "Hydrocarbon Resistance" and "Ground Stability." Standard PVC materials would degrade when in contact with diesel. We utilized a High-Tenacity TPU (Thermoplastic Polyurethane) coated fabric.
This material offers superior tensile strength and chemical inertness. To solve the permafrost issue, the flexible tanks were placed on a "Geotextile Liner" and a "Secondary Containment Berm." This allowed the tanks to "float" on the shifting ground during seasonal freeze-thaw cycles without the risk of structural cracking that would affect rigid steel tanks.
3. Results & Data-Driven Persuasion
The mining company deployed four 100,000-liter fuel bladders within 14 days of ordering. This rapid deployment saved the project timeline.
- Key Numerical Value: 95% Reduction in Transport Volume. (A 100m³ tank folds down to less than 5m³ for transport).
- Evidence: Shipping Specification Sheet (Ref: Storage Series - Cat. P-100).
- Key Numerical Value: 1.4mm Material Thickness with a breaking strength of 8000N/5cm.
- Evidence: Tensile Strength Test ISO 1421 (Ref: Product Certificate Page 3).
4. Strategic Insights & Future Implications
Flexible tanks are "Infrastructure on Demand." For B2B sectors like mining, oil and gas, or disaster relief, the ability to deploy large-scale liquid storage without "Civil Engineering Overload" is a game-changer for operational flexibility in remote environments.
